Sealing Zippers
IPX7

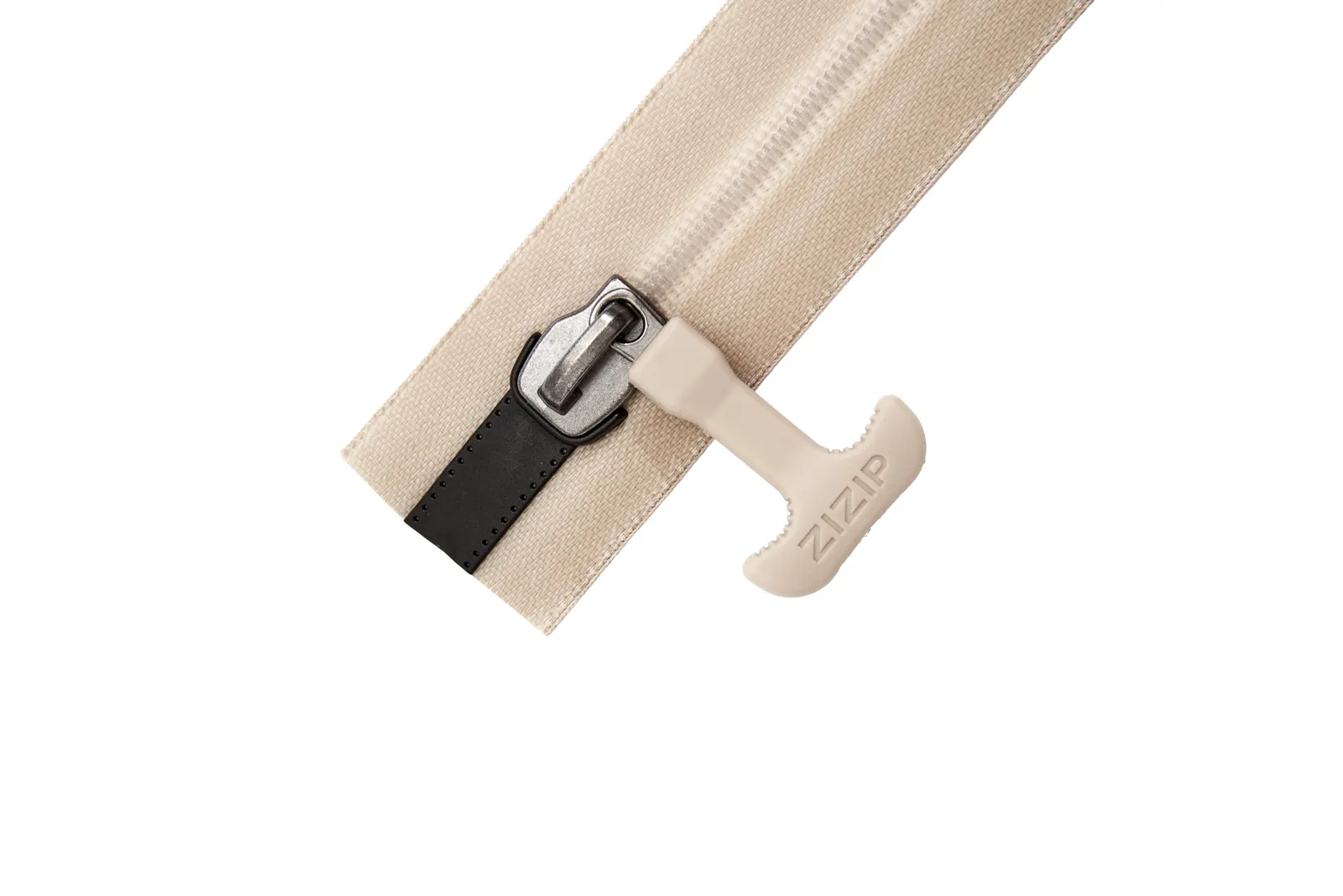

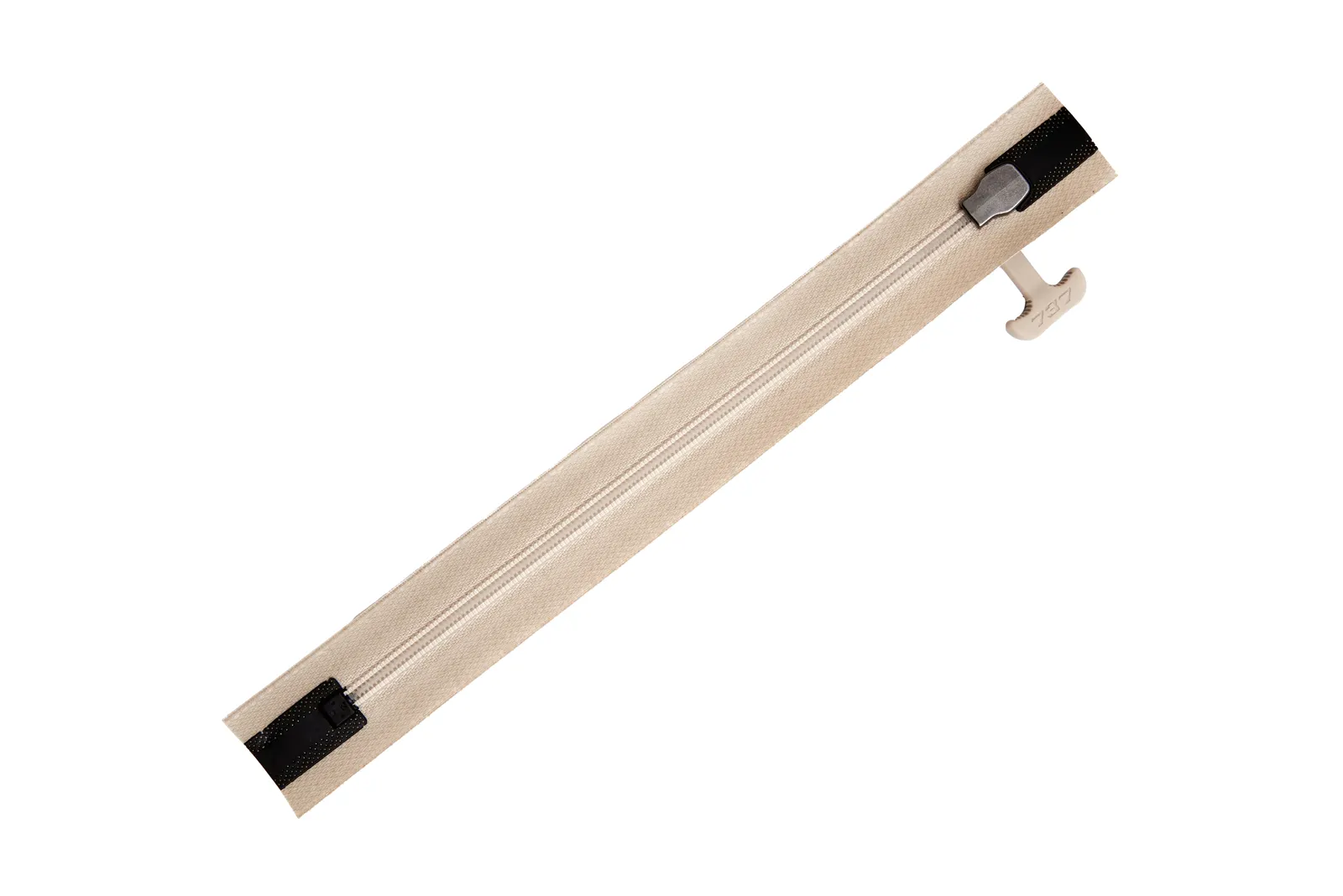

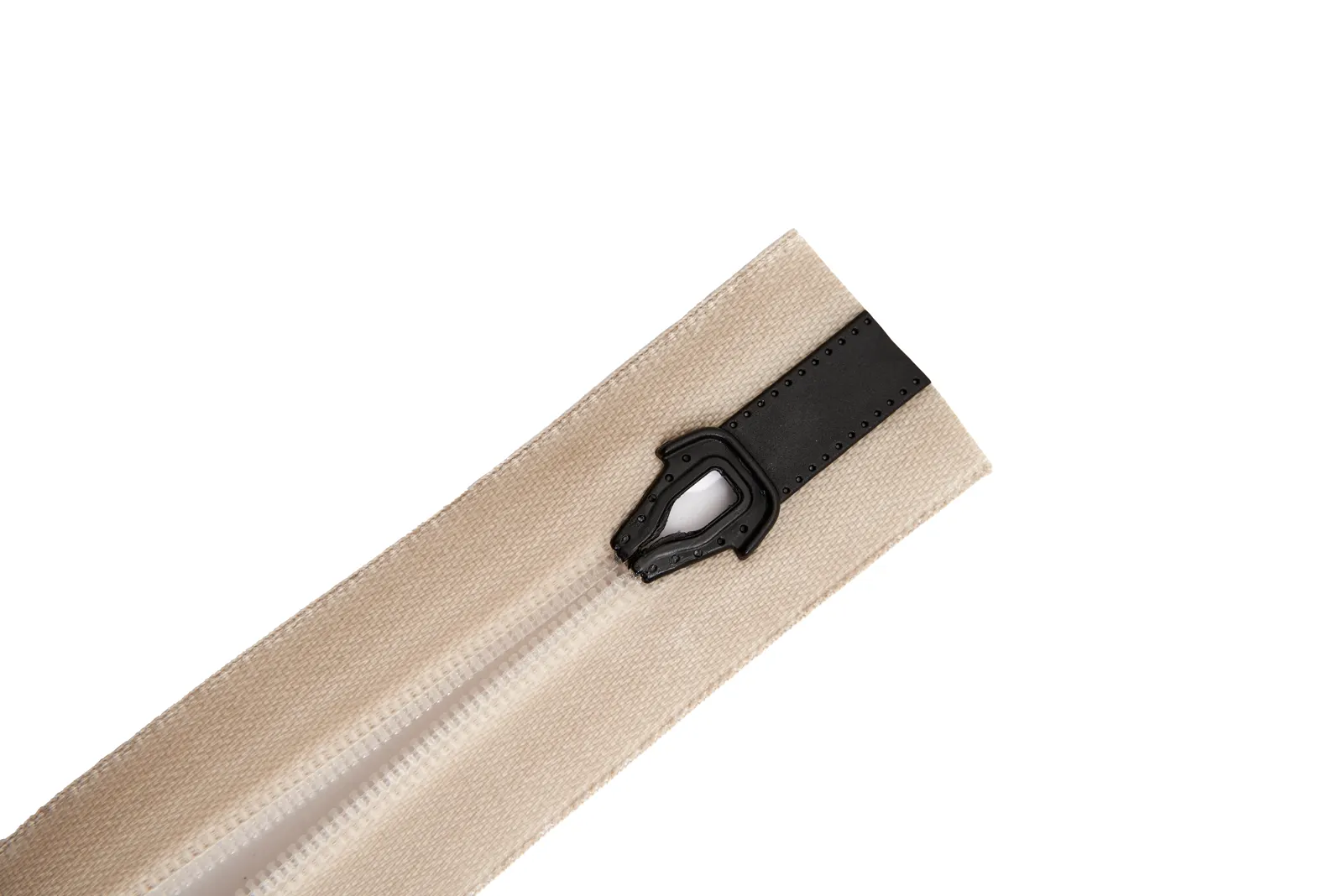

Beige AeroSeal Airtight Zipper

AeroSeal airtight zipper in a beige finish, delivering a robust IPX7 seal for demanding end-use environments.

  • Robust IPX7 Airtight Seal: Delivers complete protection against liquid and gas ingress, certified for full immersion.
  • High Tensile Strength: Features a transverse strength of 970N, significantly exceeding the >700N industry requirement.
  • Exceptional Durability: Proven to withstand 1100 reciprocating cycles under load, nearly double the standard of 600 cycles.
  • Fully Customizable: Available in a range of colors, including beige, to match your specific product design and branding needs.

Inquire About Custom AeroSeal Zippers

Get A Quote
Key Feature

Key Features

Certified IPX7 Airtightness

Full hermetic sealing against liquids and gases, verified by dedicated air pressure retention testing.

Signature Beige Finish

Custom color-matched TPU coating for brand-specific outdoor and apparel applications.

Fused TPU Construction

Hot-melt cast film fuses the waterproof layer and webbing into one — peel-resistant, delamination-suppressed.

Custom Lengths & Pullers

Cut-to-length production with OEM puller designs and logo engraving.

Sizing

Find the Right AeroSeal™™ Size

product image

#3 Airtight Zipper

  • Length: Customized
  • Width: 24.5-26 cm
product image

#5 Airtight Zipper

  • Length: Customized
  • Width: 30.5-32 cm
product image

#8 Airtight Zipper

  • Length: Customized
  • Width: 39.5-41.5 cm
product image

Custom Your Zipper

  • Length: Customized
  • Width: Customized

Technical Data Sheet

Inspection Item Test Result
Compliance Threshold
Transverse Tensile Strength 970N >700N
Slider Initial Pull Force 41N <50N
Smooth Sliding Performance 30N <40N
Abrasion Resistance 70 continuous reciprocating cycles
50 continuous reciprocating cycles
Hermetic Sealing Maintains leak-free integrity at 20kPa for >14 seconds
Maintains leak-free integrity at 20kPa for 10 seconds
Tooth-to-Tape Peel Strength 23-35N/23-36N/24-41N
Tooth Engagement Width 1.5cm, >20N
Tape-to-Finishing Peel Strength 24-33N/27-36N/25-33N
Tape Body Width 1.5cm, >15N
Reciprocating Test under Load 1100 cycles >600 cycles
Waterproof Rating IPX7 (SGS)
GB/T 4208-2017 IPX7
Water Penetration Test No leakage after 10 min in inverted position w/ 5kg water load
No leakage after 5 min in inverted position w/ 5kg water load
Slider Hardness 115HV0.3
Vickers-Hardness 0.3 Test (>80 HV0.3)
Slider Load Capacity 170N >100N
Slider Tensile Strength 165N >100N
Pull Tab Torque Resistance 345N >200N
Pull Tab Extraction Strength 255N >150N
Proven

Trusted Performance in Various Extreme Environments

Diving Suits

Diving Dry Suits

Hazmat Suits

Protective Clothing

Inflatable Field Medical Tent

High-Performance Outdoor Gear

OEM / ODM

Custom Engineered Sealing Solutions (OEM/ODM)

Millimeter-Perfect Customization

Precision is paramount. We manufacture zippers to your exact length specifications, achieving millimeter-level accuracy. This dedication ensures seamless integration into your application, significantly minimizing material waste, and simplifies your overall assembly process.

Millimeter-Perfect Customization

Custom Colors for Brand Matching

Match your brand's exact color palette. We provide custom color matching for both the zipper tape and the TPU coating based on the Pantone (PMS) color system, ensuring seamless integration with your product's design.

Custom Colors for Brand MatchingCustom Colors for Brand Matching

Specialized Puller Designs with Your Logo

We offer a variety of industrial-grade zipper puller options tailored for different application scenarios, combining functionality, ergonomics, and visual appeal, with the option to customize brand logos upon request.

Specialized Puller Designs with Your LogoSpecialized Puller Designs with Your LogoSpecialized Puller Designs with Your LogoSpecialized Puller Designs with Your Logo

Custom Material & Coating

Engineered for your specific application. Our zippers are built with high-strength Polyester fabric tape and coated with a high-performance TPU (Thermoplastic Polyurethane) layer. We work with you to ensure the material combination provides the optimal balance of flexibility, durability, and sealing performance.Consult our team of engineers and we will deliver the optimal solution tailored to your specific needs.

Custom Material & CoatingCustom Material & Coating

SUPPORT & FAQ

What are your standard zipper specifications? Can I request customization?
Our standard zipper sizes are No. 3, No. 5, and No. 8, with detailed parameters listed in the Raw Woven Zipper Quality Standards. Customization options include: Length (tailored to your requirements) Color (standard and custom colors available) Slider/zip puller (various designs; selected models can be engraved with logos)
What is your minimum order quantity (MOQ) and lead time?
MOQ: 500 pieces per order. For quantities below 500, a setup fee of RMB 200 applies. Sample Policy: Free standard samples are available (No. 3/5/8, 20cm length), with freight collect. Lead Time: (based on current factory schedule) Samples: black waterproof airtight zippers within 48 hours; colored and double-tooth types within 3–5 days. Bulk orders (<10,000 pcs): black waterproof airtight within 3 days; colored and double-tooth within 5–7 days. Bulk orders (>10,000 pcs): subject to scheduling. Current production is booked until October.
Do your zippers have certifications? What testing do you perform before shipment?
Yes, our zippers are certified with SGS waterproof certification and ISO quality management system certification. Before shipment, each batch undergoes strict testing: Appearance (visual inspection), dimension (steel ruler), color (colorimeter) Airtightness test (custom testing device) Smoothness test (tensile tester), peel strength, adhesive bonding test Repeated open/close test (manual), jamming inspection 90° bending pull test (manual), packaging inspection
What after-sales service and technical support do you provide?
After-Sales Warranty: 30-day warranty from receipt. Defects caused by material issues or manufacturing (e.g., leakage, airtight failure, broken teeth) are covered with replacement or compensation. Exclusions: man-made damage, improper maintenance (e.g., dirt/sand not cleaned), third-party repair/modification. Technical Support: Instant contact: online chat (EN & CN), support email, emergency hotline (Mon–Fri, 9:00–18:00 GMT+8) Material verification (send us your material for compatibility testing) Processing guidance (temperature, pressure, time parameters for verified materials) Usage & maintenance guide Custom sealing solutions for special applications (e.g., aerospace equipment)
What shipping and payment options do you offer?
Shipping Terms: FOB, CIF, DDP. Long-term logistics partners available for flexible delivery solutions. Payment Methods: T/T and L/C. Detailed terms can be discussed based on order conditions.
